Solar-powered 4-beams active wireless infrared light wall

  • Solar-powered 4-beams active wireless infrared light wall

Solar-powered 4-beams active wireless infrared light wall

Price :
$93.00

Freq.



Add to Cart:
  • Model: HB-T001Q4
  • Shipping Weight: 3.5kgs
  • 82 Units in Stock
  • Manufactured by: HB solar beams

DESCRIPTION

Self-contained solar powered motion sensor alarm with sound. Built-in speaker and sound can be set as 5-60s or mute.

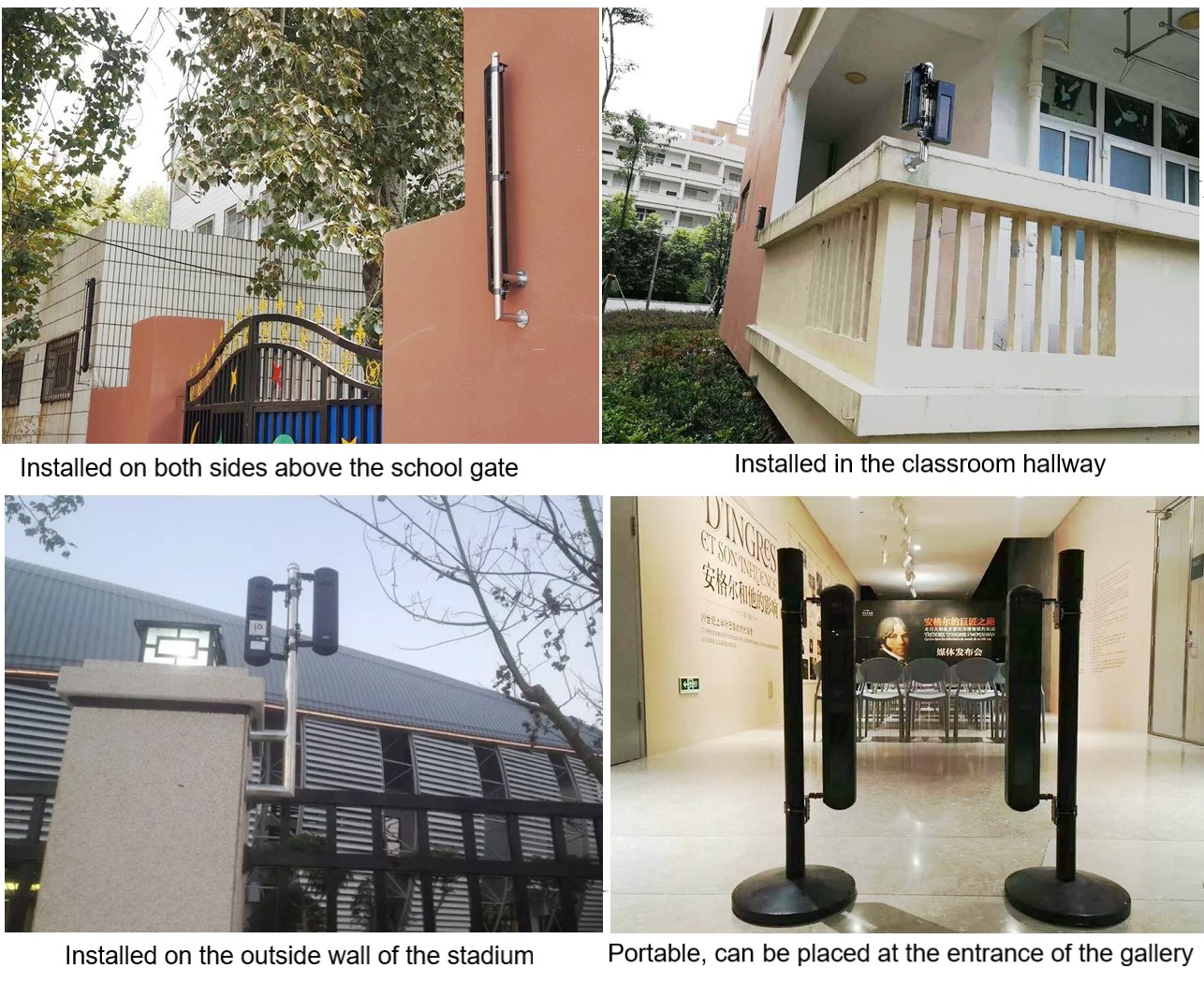

Infrared distance 100m solar powered intrusion barrier used for school, workshops, perimeter fencing of residential quarters etc.
Functions and Specification:
1.It is a solar-powered wireless product and should be installed at place with sunlight intensity more than 2200lux.
2.It is quad beams wireless outdoor infrared detectors working by pairs of transmitter and receiver.
3.Irradiation distance:100m
4.Wireless transmitting distance:800m
5.Wireless frequency:433MHz
6.Maximum alarm times in 24 hours:<=50 times
7.Infrared light beam number: 4 beams
8.Battery capacity: transmitting terminal: 500mAh, receiving terminal: 1000mAh
9.Working temperature: -30℃~70℃
10.Working voltage:3.3V
11.Power storage type: LiFePO4 Battery
12.Static working current: transmitting terminal<=0.5mA, receiving terminal<=0.5mA
13.Infrared light frequency: secondary modulation & encoding based on 38KHz
14.Infrared light wave-length: 940nm+/-20nm
15.Output current of solar panel: Under the condition of 1800Lux lighting >=2mA (Outdoor illumination in ordinary rainy or cloudy days is about 2000Lux)
16.Dimension:590*84*45mm
17.Distance between infrared light hole: 35mm

How to choose active infrared beams
There are different beams quantity such as 2 beams, 3 beams, 4 beams, 6 beams and 8 beams of photoelectric beam sensor. So, how many beams should I choose? The more beams means higher of protection height and longer of detection distance. For example, if the distance between two infrared holes is 35mm, then, for 3 beams sensor, the protection height is 70mm. For 4 beams sensor, any two neighbor beams are blocked, it will trigger alarm. Same for 6 beams or 8 beams sensor. So more beams will be with more security such as for bank. More beams means more power of infrared beam transmission and with stronger penetration to against interference of fog, sunshine etc.
And what does the infrared detection distance mean? It means the distance between the transmission terminal and receiving terminal. The actual installation distance should be less than 80% of the specified distance. For example, the specified detection distance is 100m, then the actual installation detection distance should be less than 80m. If no interference, the detection can reach to 6 times of specified distance. (6*100=600m). But environment interference should be considered for using.
There are some rules for active infrared beam installation. For example, if the beam sensor is installed on a low wall, the distance between the top of the wall and the lowest infrared hole should be around 150mm. Because the size of a normal person is 500mm(width)*200mm(thickness), that will avoid intrusion of people from bottom side of the beam sensor and false alarm triggered by small animals.
HB solar power infrared beam system can be easy calibrated.
1. Make sure that the eye can see the other end through the mechanical calibration hole at one end.
2. Ensure that the LCD displayed figures are large and stable.

Solar powered wireless infrared beams detectors products are available with 100m, 50m and 20m infrared distance (detection distance between transmitter and receiver terminal). The laser beams 3 beams, 4 beams, 6 beams and 8 beams are available. Check all these products at http://www.vedardalarm.com/hb-solar-beams-m-3
