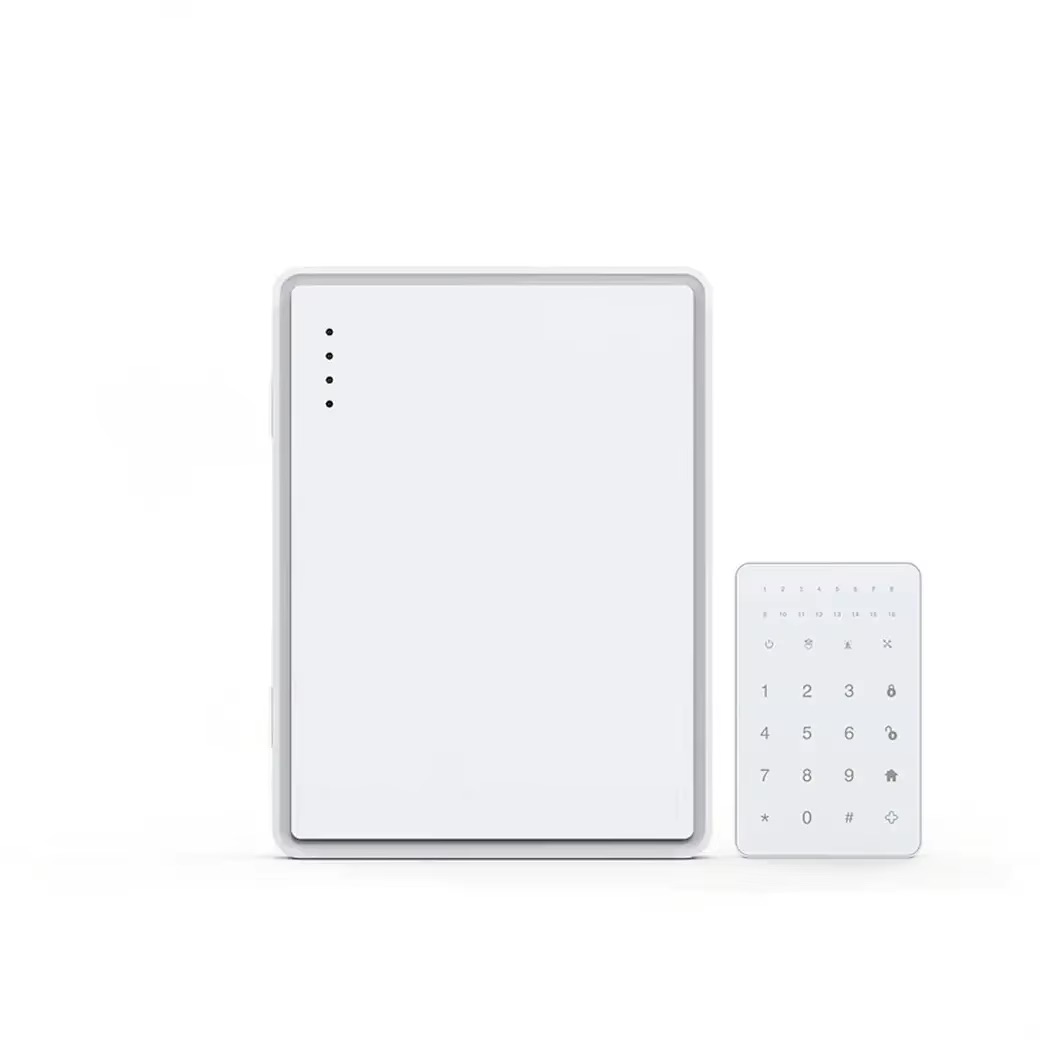

Network Video Alarm Panel FC-7616 made by MEIAN TECHNOLOGY CO., LTD for integrated
security control of commercial security or industry security.

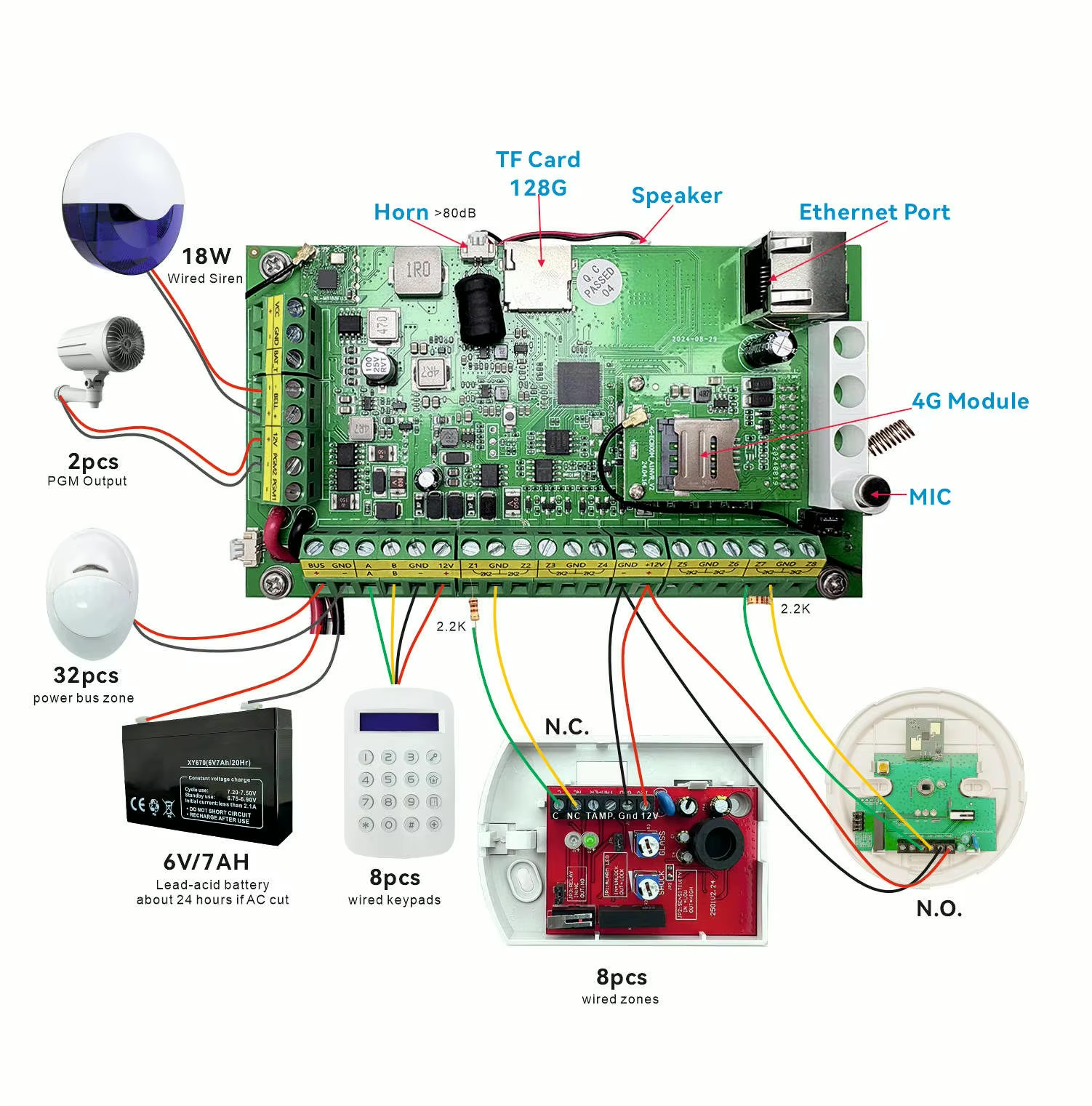

FC-7616 is with 4 channels video input, 64 wireless alarm input, 8 wired alarm input and 32 single bus alarm input, support 4 way siren strobe, 8 remote controller, 2 PGM output for linkage control.
FC-7616 can work with any brand NVR and max 128G TF card.
The Video Alarm panel has TCP/IP, WIFI and 4G network for optional. It support remote monitoring via smart phone app, PC software or IE browser.

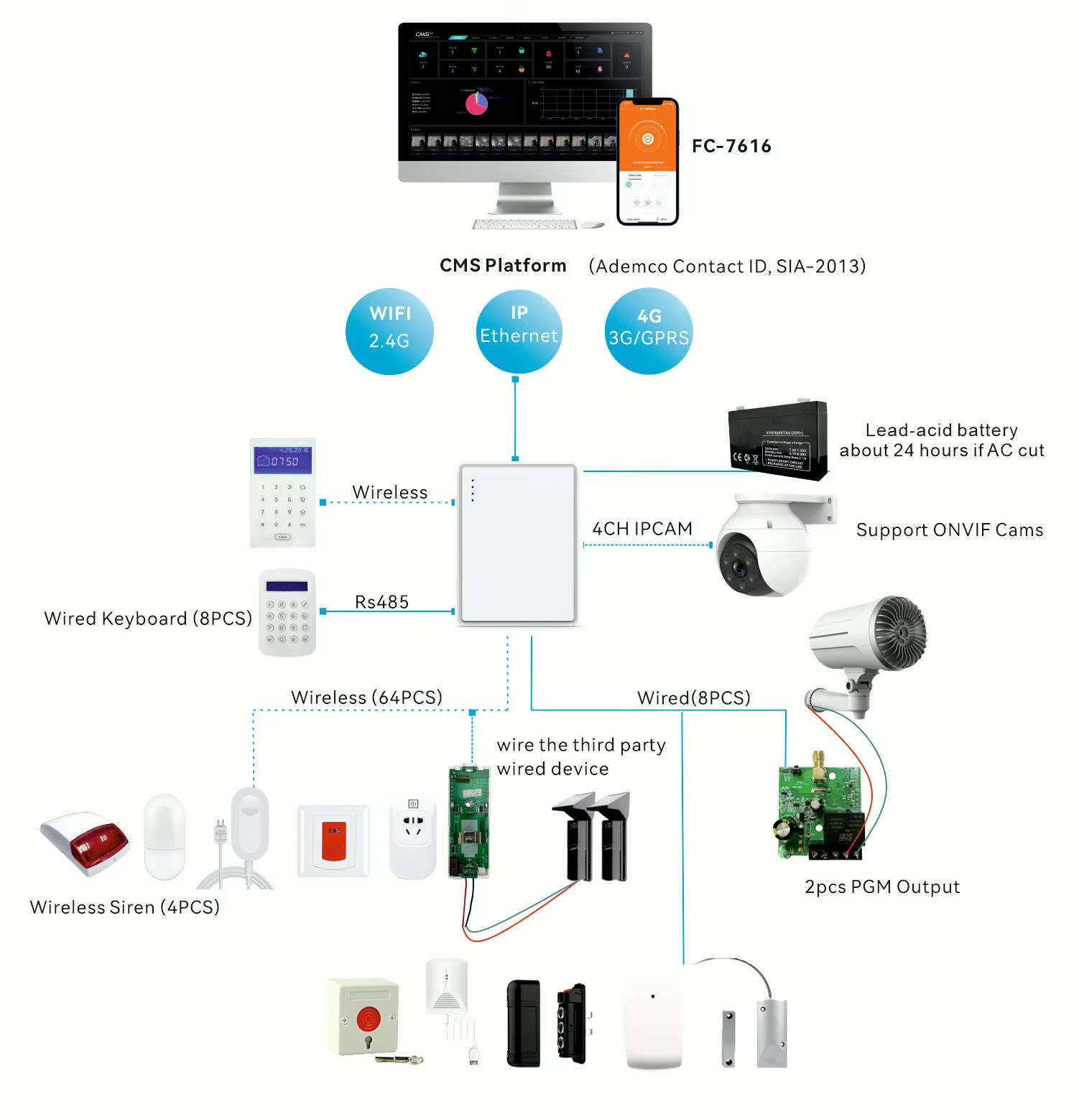

With FC-7616, all security equipment can be managed and monitored at one site and remote monitoring and
surveillance easy.
Brand: Focus
Model: FC-7616
Operating system: Embedded Linux

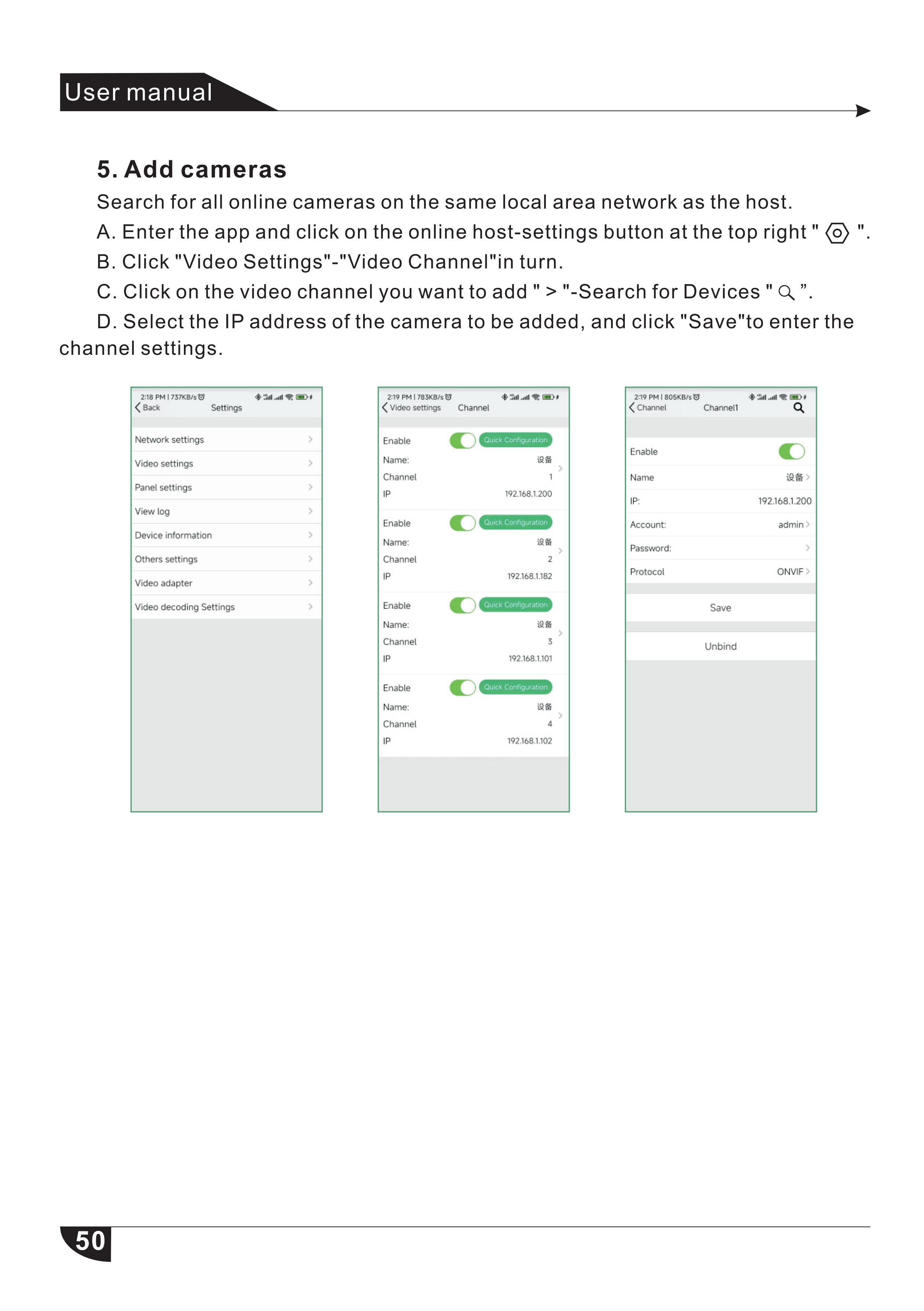

User interface: IE browser, CMS client, App(iOS/Android)
Audio format: Supports G711 bidirectional voice
Video format: H.264/H.265
Network interface: 10M/100M adaptive network interface
Modulation mode: FSK two way
Wireless working frequency: 2.4G, 433/868MHz (optional)
Supporting protocols: Ademco Contact ID, SIA TCP/IP, onvif protocol (compatible with onvif camera from the 3rd party suppliers)
Channel support: 4 channels
Number of devices: Supports 64 wireless detectors, 8 wired detectors, 32 single bus detectors, 8 remote controls, 8 wired keyboards, 1 wired siren, 4 two way sirens, 2 PGM outputs
4G module (optional): EU, US, CN, SA optional
SIM card type: Micro SIM
Network support: Ethernet, WiFi, 4G
WiFi protocol: 802.11 b/g/n
TF card: Support max. 128G standard TF card
Power input: DC 12V input
Product Size: (D)245*(W)180*(H)245mm
Operating temperature: -10°C~50°C; Humidity<90%RH
Package Includes: 1*Panel, 1*Screw pack, 1*adapter, 1*User manual.
Warranty: Product Warranty period (Worldwide): 24 months
