Wireless Photoelectric Smoke Detector

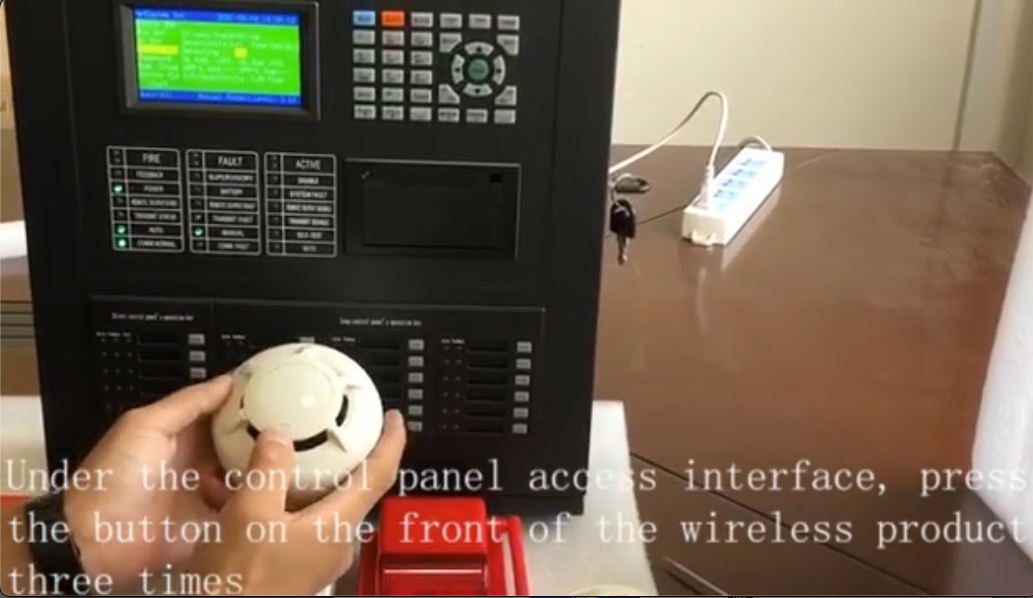

TC5401W wireless photoelectric smoke detector is an intelligent industrial fire detector based on the principle of transmitting and receiving high- precision infrared tubes, which can be used with the wireless fire alarm control panel and smart home
platform APP The detector uses 470MHz wireless transceiver technology to process data with a highly integrated micro-processing chip. It has the characteristics of high sensitivity, long transmission distance and low power consumption.
Technical Data All data is supplied subject to change without notice.
Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated. Battery CR17450 3V Operating current monitoring current≤8uA , alarm current≤18mA Coding method automatically assigned when networking.
Radio frequency transmit power<20dBm
Frequency band 470MHz
Communication distance ≤700m
Communication method 470MHz FSK coded bidirectional
Protection area 20~30m2
Operating environment temperature 10℃~+55℃
relative humidity ≤95%
Dimension 100mm*55mm(with base)
Weight 118g
Accurately and quickly detect the change of smoke concentration in the environment, accurately and timely determine the fire and give an alarm advanced wireless communication technology, signal transmission can be completed without wiring, and engineering installation is simple and convenient It has the function of battery low voltage detection, and reminds the user to replace the battery when it is insufficient to maintain the normal operation of the detector.
