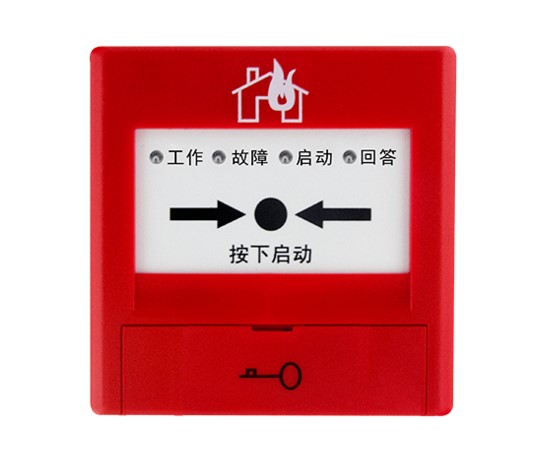

Wireless Fire Hydrant Button

TCXH5415W wireless fire hydrant button is suitable for installation in public places. when manually confirming to start the fire pump, press the start button on the fire hydrant button, and the red light of the fire hydrant button is always on, which can send a start signal to the control panel through wireless communication technology and start the fire pump at the same time; After the fire pump has been started, the fire hydrant button answer light is always on, the fire hydrant button sends an answer signal to the control panel through wireless
communication technology, and the fire hydrant button enters the state of waiting for the control panel to reset.
The control panel can display the coded information of hydrant button and make sound.
Technical Data
All data is supplied subject to change without notice.
Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated. Battery CR17450
Rated Operating Voltage 3V
Operating current monitoring current≤15uA , alarm current≤10mA
Coding method automatically assigned when networking
Radio frequency transmit power<20dBm
Communication distance ≤700m
Communication method 470MHz FSK coded bidirectional
Operating environment temperature 10℃~+55℃ relative humidity ≤95% Dimension 96mm*95mm*50mm
Weight 190g

The wireless communication technology is adopted, and no embedded
wiring is needed, so the engineering installation is convenient and quick;
With battery low voltage detection function, it can reflect the battery power situation in time; The microprocessor is used to realize signal processing, and the digital signal is used to communicate with the control panel, which works stabely and reliably, and has a good ability to suppress electromagnetic interference.
