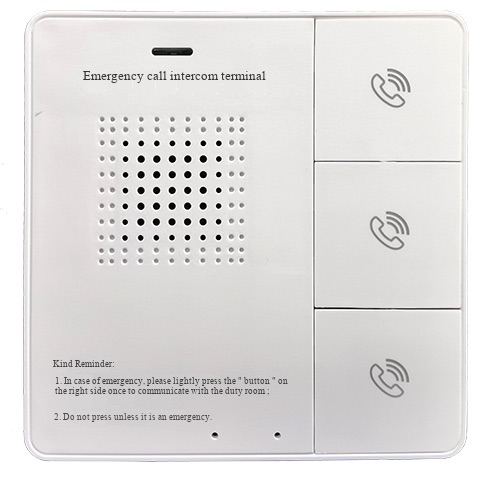

EM-06-4G is an 86-box embedded one-touch emergency alarm terminal with 4G full-network access. It supports dual communication via 4G cellular network and IP network, built-in two-way voice intercom, instant alarm, electronic map positioning and multi-platform message push. It is specially designed for campus safety, hospital security, elderly care, hotel safety and other public security scenarios.
Network frequency band: Supports B3, B5, B8 full network connectivity
Communication method: 4G
Alarm content: Emergency assistance, disassembly prevention, power outage and other alarm situations
Alarm storage: supports both local and cloud storage methods for alarm storage
Alarm mode: voice, SMS alarm, WeChat official account, applet, mobile phone APP
Anti disassembly function: Cloud platform pushes alarm information
Positioning function: GPS+base station+WiFi positioning, three positioning modes
Intercom methods: network data voice intercom+telephone dial-up intercom
Alarm voice customization: supports customization of 20 alarm keywords
Built in camera: optional
Working mode: Supports three modes: AI voice call, button call, and rope call
Battery capacity: Built in 500mAh polymer battery
Standby time: 4 hours of standby time when powered off
Working voltage: AC220-240V
Working current: ≤ 10mA monitoring, ≤ 100mA alarm:
Working environment: -10 ° C~55 ° C, ≤ 95% RH;
Installation method: Embedded installation
Shell material: Aluminum alloy material (explosive version) ABS: UV resistant material
Dimensions: L86 * W86 * H33mm (86 box model)
L212 * W125 * H44mm (explosion-proof version for optional, please contact us)
Core Functions
1. One-touch emergency alarm: Trigger alarm instantly by pressing the physical button; system response time ＜ 1 second.
2. Dual network (4G + IP): Compatible with China Mobile, China Unicom and China Telecom 4G networks; works with wired IP network for wider coverage and stable transmission.
3. Two-way voice intercom: After alarm triggering, the on-site terminal can communicate with the management center in real time.
4. Multi-channel alarm notification: Alarm messages are pushed synchronously to PC management platform, mobile APP and local management host.
5. Electronic map positioning: The cloud platform automatically pops up the on-site location map and linked video after alarm activation.
6. Camera linkage: Automatically activate nearby surveillance cameras to record and monitor the scene.
7. Alarm log recording: The cloud platform saves all alarm records for later inquiry and audit.
EM-06-4G Terminal → 4G / TCP-IP Network → Meian Cloud 3.0 IoT Platform → Multi-level management terminals (Education Bureau monitoring screen, campus alarm host, duty room controller, staff mobile APP). The device can link with network cameras and other alarm devices to build a full-area
security system.
